Mouse Behavior Box v2

Mouse operant chamber for Bpod
Product ID: 1030

$1,595.00 USD

0 in stock

Quantity:


Description

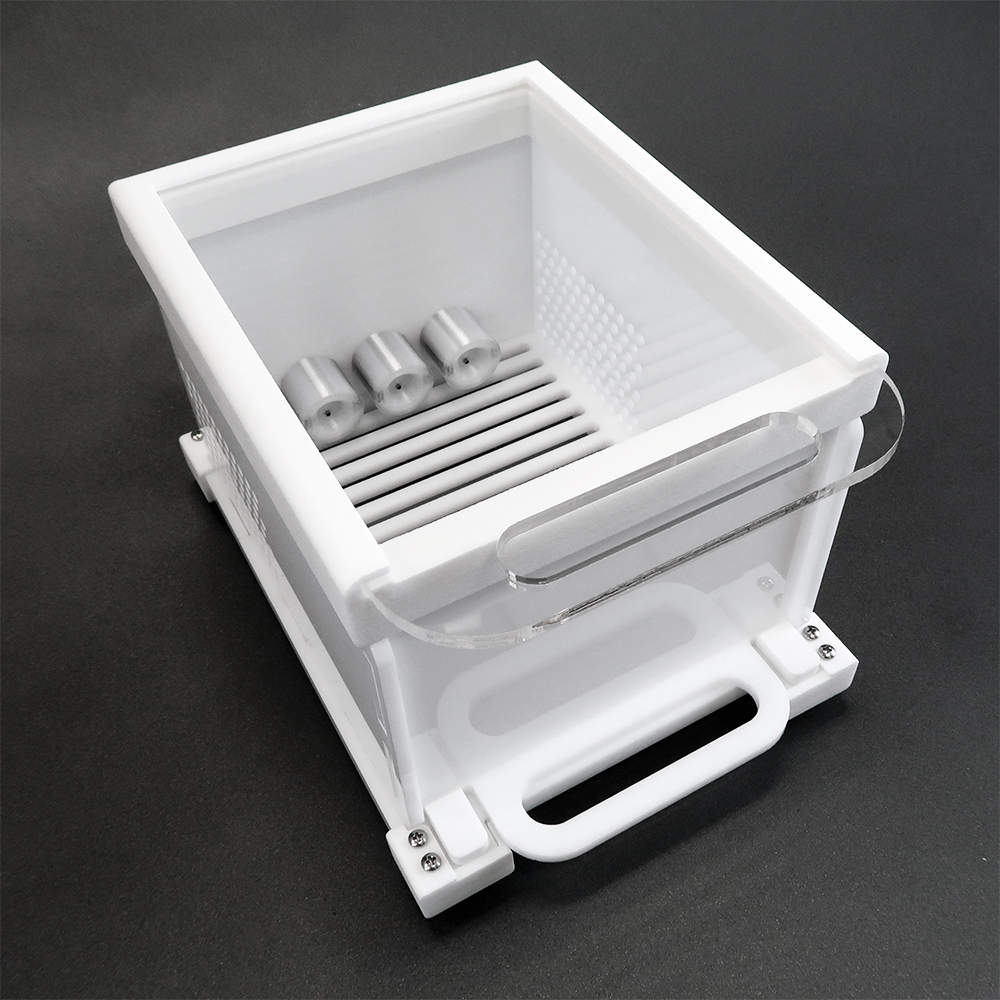

The Bpod mouse behavior box r2 is a behavior chamber for use with Bpod. It is constructed primarily from laser-cut acrylic and 3D printed nylon (SLS printer). It comes outfitted with 3 behavior ports, 3 interface boards and 3 solenoid valves. Version 2 has thicker (4.5mm) acrylic walls for durability, and an all-acrylic base to make cleaning easier. Please note: Clean acrylic panels with mild detergent and water only. Using Ethanol or other solvents could weaken the material. You will need to supply a tray to collect waste.

Specifications

Ports

Top

  • Clear 4.5mm laser-cut acrylic allows video monitoring
  • Handle for easy removal

Walls

  • White 4.5mm laser-cut acrylic
  • 3 port holes (see github for other configurations)
  • A grid of holes passes sound for auditory stimuli

Floor

  • White 4.5mm laser-cut acrylic
  • Handle for easy removal
  • 2 retaining pins secure the floor during behavior
  • 5mm slits help prevent waste from collecting inside

Frame

  • Top bracket and foot brackets 3D printed from plastic resin
  • Top contains a track for the roof
  • Foot brackets are removable, and permanently bonded to rubber feet

Dimensions

  • L: 19.3cm ~(7 1/2")
  • W: 14.0cm ~(5 1/2")
  • H: 13.9cm ~(5 1/8")
