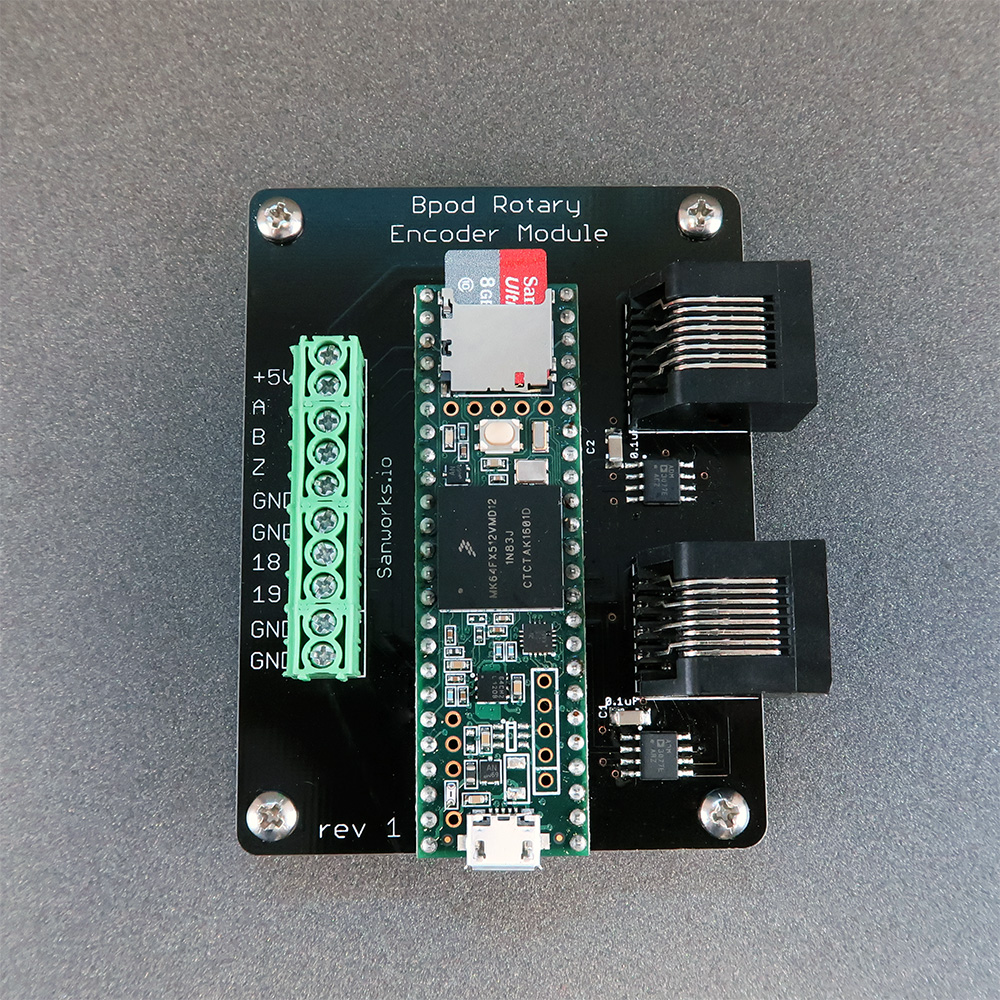

Rotary Encoder Module

Rotary encoder interface for Bpod
Product ID: 1022

$225.00 USD

0 in stock

A newer version of this product is available

Quantity:



Description

This module records and analyzes rotational movement, using a Yumo E6B2-CWZ3E 1024-position rotary encoder. It is capable of logging position data to a microSD card, streaming live position data to the computer, and streaming position directly to an external module (i.e. Analog output or DDS) for closed-loop sensory feedback applications. Position thresholds can be set, and reported as behavioral events to the Bpod state machine. The Bpod-CAD repository includes open designs for a 3D printable rotary encoder mount and paw-interface wheels, which can be used as a starting point for constructing custom paw-motion interfaces.

Specifications

Compatability

  • Requires Bpod v0.7 or newer.

Processor

Serial I/O

  • Bpod State Machine (via RS-485 buffered UART, 1.3Mb/s)
  • Second Bpod Module (via RS-485 buffered UART, 7.3Mb/s)
  • USB

Digital I/O

  • Two digital I/O lines are provided (3.3V logic, 5V tolerant)
  • The lines can be configured as a hardware I2C interface for custom applications

Memory

  • 8GB MicroSD card included

Dimensions

  • L: 7.5cm (3")
  • W: 6cm (2 3/8")
  • H: 2cm (3/4")
