Mouse Behavior Box

Mouse behavior chamber for Bpod
Product ID: 1007

$795.00 USD

0 in stock

Quantity:



Description

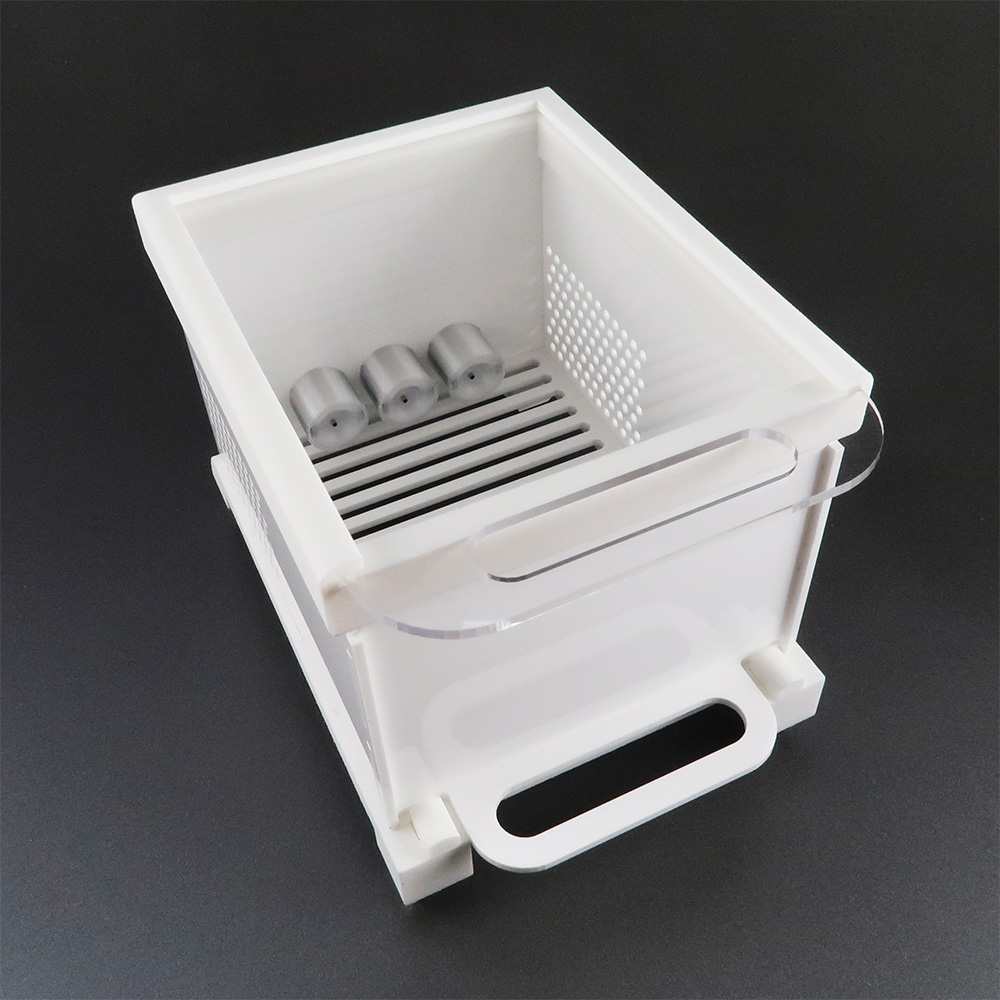

The Bpod mouse behavior box (beta) is a behavior chamber for use with Bpod. It is constructed entirely from laser-cut acrylic and 3D printed nylon (SLS printer). The box is under active development, but we're making it available early for beta testers who wish to try it and provide feedback. It comes outfitted with 3 behavior ports, 3 interface boards and 3 solenoid valves. Please note: Clean acrylic panels with mild detergent and water only. Using Ethanol or other solvents could weaken the material. You will need to supply a tray to collect waste.

Specifications

Ports

Top

  • Clear 3mm laser-cut acrylic allows video monitoring
  • Handle for easy removal

Walls

  • White 3mm laser-cut acrylic
  • 3 port holes (see github for other configurations)
  • A grid of holes passes sound for auditory stimuli

Floor

  • White 3mm laser-cut acrylic
  • Handle for easy removal
  • 2 retaining pins secure the floor during behavior
  • 5mm slits help prevent waste from collecting inside

Frame

  • Top and bottom parts 3D printed from plastic resin
  • Top contains a track for the roof
  • Bottom contains rubber feet

Dimensions

  • L: 19.3cm ~(7 1/2")
  • W: 14.0cm ~(5 1/2")
  • H: 13.9cm ~(5 1/8")
