Description

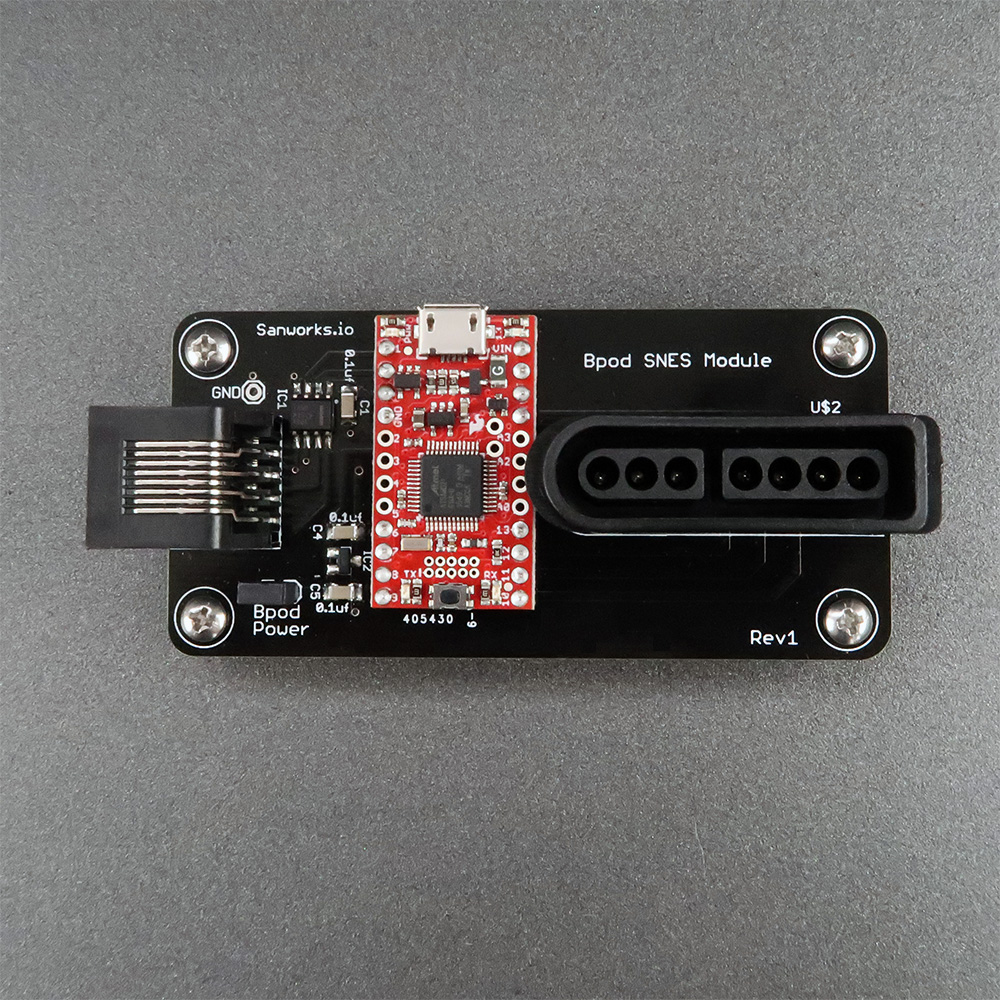

The SNES module allows the Bpod state machine (v0.7+) to interface with a Super Nintendo controller. The buttons on the controller are scanned at 20kHz. If a button is pressed or released, the module generates a behavior event, which can be handled by the Bpod state machine with 100μs latency. The SNES module provides a convenient button array for human psychophysics.

Specifications

Processor

• ARM Cortex M0: Atmel SAMD21 (open source Sparkfun breakout board, programmable as an Arduino Zero)
• 48MHz clock speed, 32-bit

Game Controller

• Standard SNES controller connector and pinout
• We validated the board with an aftermarket SNES controller (not included).

Power supply

• Can be derived from a USB A to B-micro cable (not included)
• By connecting an onboard jumper, the board can be powered from State Machine r2. In this configuration, a dedicated USB cable is not required.

Material safety

• All parts are RoHS Compliant in our professional builds

Dimensions

• L: 9.0cm (6")
• W: 4.0cm (1 5/8")
• H: 3.0cm (1 1/8")
