Description

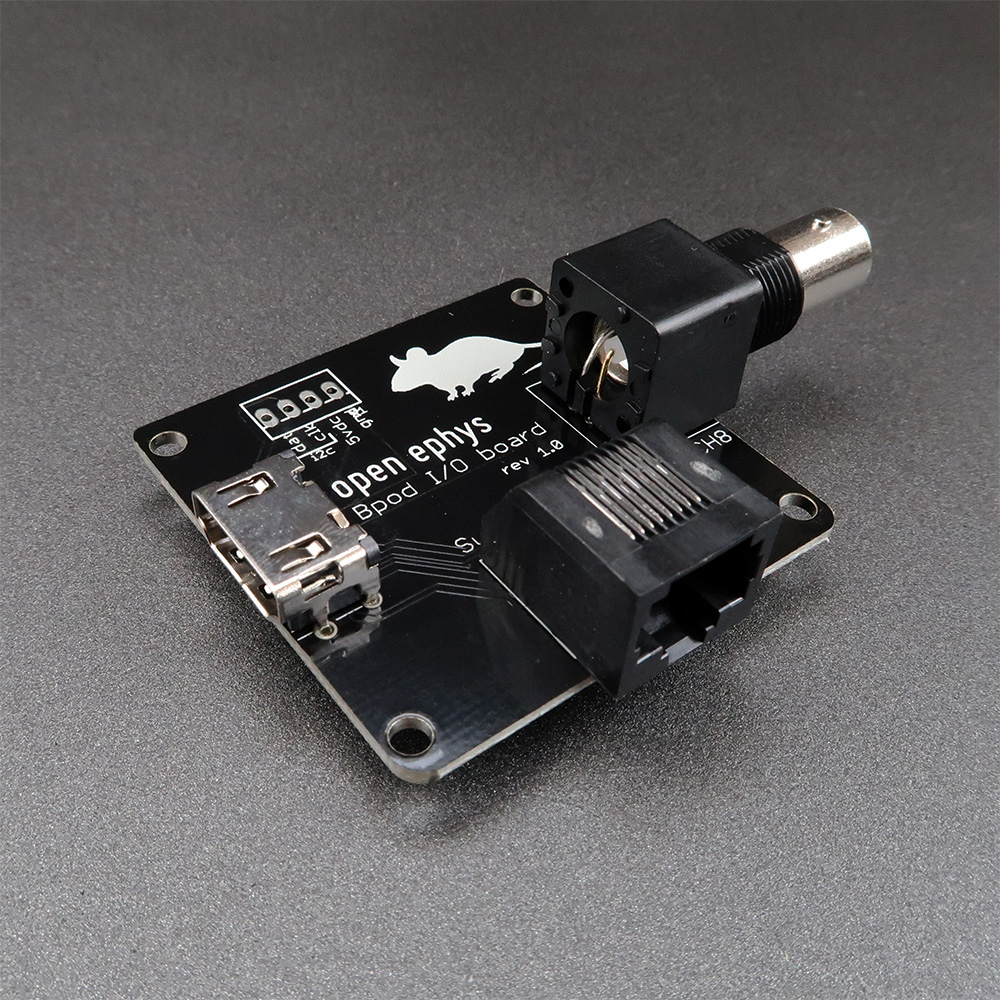

The Bpod Open Ephys Sync Board interfaces Bpod behavioral event codes with digital i/o lines of the Open Ephys system. NOTE: This sync board is only compatible with state machine r0.5. Versions r0.7-1.0 and r2 do not have a 'sync' port. Instead, they send sync signals using any available digital output channel.

Specifications

Inputs

• RJ45 connector; 7 data pins, 1 ground pin
• BNC connector; 1 data pin, 1 ground pin

Outputs

• HDMI connector

Dimensions

• L: 7cm (2 3/4")
• W: 5cm (2")
• H: 3cm (1 1/8")
