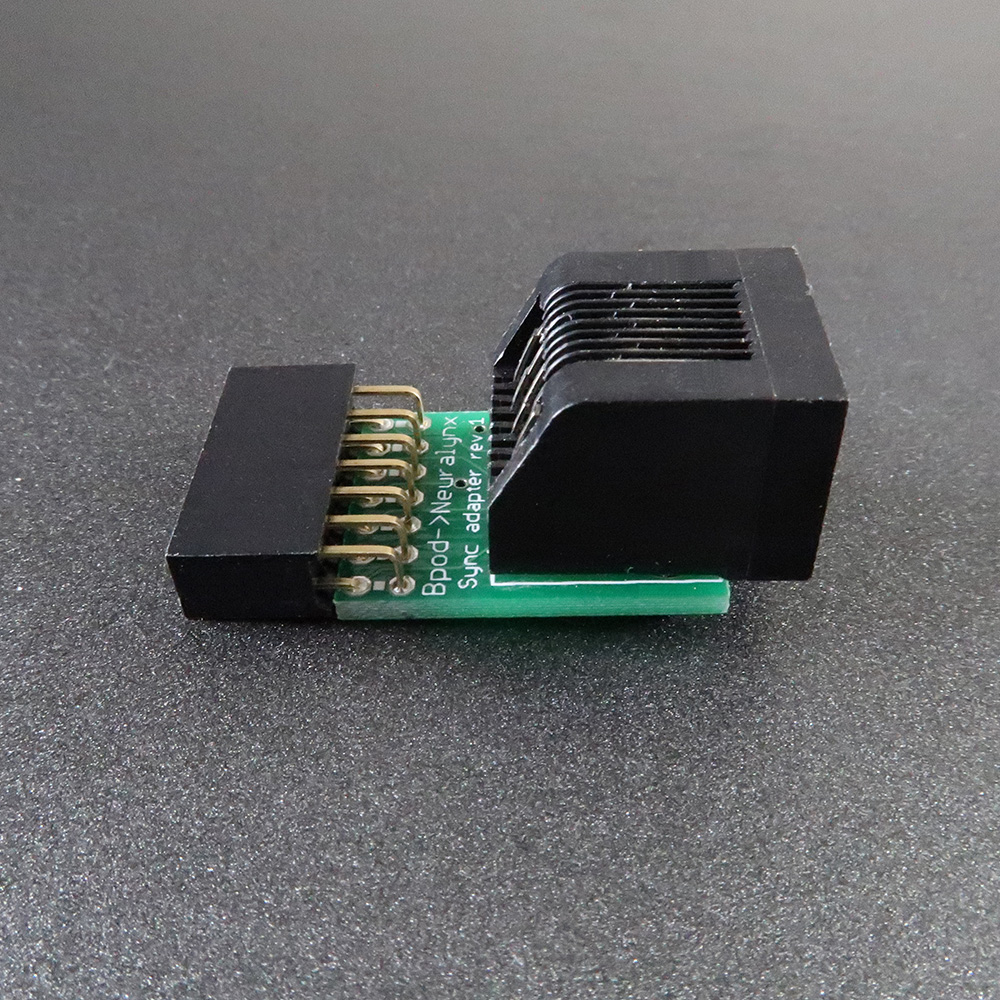

Neuralynx sync board

Connects Bpod r0.5 state codes to Neuralynx
Product ID: 1003

$14.95 USD

0 in stock

Quantity:



Description

The Bpod Neuralynx Sync Board interfaces Bpod behavioral event codes with digital i/o lines of Digilynx and Cheetah32 systems. NOTE: This sync board is only compatible with state machine r0.5. Versions r0.7-1.0 and r2 do not have a 'sync' port. Instead, they send sync signals using any available digital output channel.

Specifications

Inputs

  • RJ45 connector; 7 data pins, 1 ground pin

Outputs

  • 2x7 pin female connector
  • Pitch: 0.100" (2.54mm)

Dimensions

  • L: 3cm (1 1/8")
  • W: 1.9cm (3/4")
  • H: 1cm (3/8")
